Speed Up LLMs Using a Semantic Cache Layer With SingleStoreDB

Large Language Models (LLMs) like OpenAI’s ChatGPT are very large in size and complexity. They are at the center of numerous applications, ranging from chatbots to robust generative tasks.

While they have an impressive ability to understand and output human-like text, they also present challenges when deployed in production — particularly in terms of latency and computational cost. A semantic cache layer addresses many of these challenges in LLM production workloads.

What is a semantic cache layer?

A semantic cache not only stores previous results like a traditional cache, but it also understands the semantic meaning of the query. This means that queries or questions that are not exact matches can still provide previous answers if the intent of the request is the same.

This is crucial for LLM production workloads for a number of reasons:

Repetitive queries. Users asking very similar questions do not need to repeatedly invoke the LLM.
Reduced latency. A single call to the model can be resource intensive and time consuming. A semantic cache can answer questions almost instantaneously for a better user experience.
Scalability. Handling increased simultaneous requests can strain the system, and a semantic cache significantly offloads demand for computational resources
Cost. Lower operational costs by reducing the number of calls to the model.

Why use SingleStoreDB as the semantic cache layer?

SingleStoreDB is a real-time, distributed database designed for blazing fast queries with an architecture that supports a hybrid model for transactional and analytical workloads. This pairs nicely with generative AI use cases as it allows for reading or writing data for both training and real-time tasks — without adding complexity and data movement from multiple products for the same task. SingleStoreDB also has a built-in plancache to speed up subsequent queries with the same plan.

Let's build this!

Tables

To illustrate this, we have a stock ticker data table:

1
CREATE TABLE stock_table (
2
  ticker varchar(20) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
3
  created_at datetime DEFAULT NULL,
4
  `open` float DEFAULT NULL,
5
  `high` float DEFAULT NULL,
6
  `low` float DEFAULT NULL,
7
  `close` float DEFAULT NULL,
8
  volume int(11) DEFAULT NULL,
9
  SORT KEY (ticker, created_at desc),
10
  SHARD KEY (ticker)
11
);

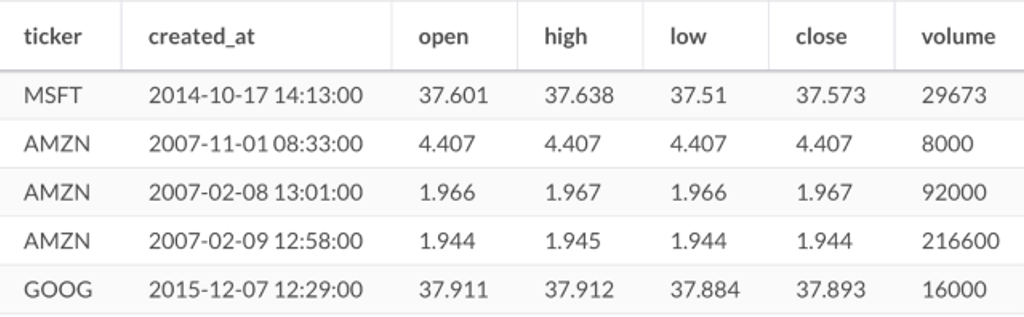

The table is populated with about 6 million records. Here are five random rows:

There is also a table to store the vector embeddings:

1
CREATE TABLE embeddings (
2
  id bigint(11) NOT NULL AUTO_INCREMENT,
3
  category varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
4
  question longtext CHARACTER SET utf8 COLLATE utf8_general_ci,
5
  question_embedding longblob,
6
  answer longtext CHARACTER SET utf8 COLLATE utf8_general_ci,
7
  answer_embedding longblob,
8
  created_at datetime DEFAULT NULL,
9
  UNIQUE KEY `PRIMARY (id) USING HASH,
10
SHARD KEY __SHARDKEY (id),
11
SORT KEY __UNORDERED ()
12
);

Let’s create the LLM in SingleStoreDB notebooks using Langchain

Imports and variables

1
import singlestoredb as s2
2
import getpass
3
import numpy as np
4
import openai
5
from sqlalchemy import create_engine
6
from langchain.agents import create_sql_agent
7
from langchain.agents.agent_toolkits import SQLDatabaseToolkit
8
from langchain.sql_database import SQLDatabase
9
from langchain.llms.openai import OpenAI
10
from langchain.agents import AgentExecutor
11
import time
12
from openai.embeddings_utils import get_embeddings
13
apikey = getpass.getpass("Enter openai apikey here")
14
os.environ["OPENAI_API_KEY"] = apikey
15
model = 'text-embedding-ada-002'
16
table_name = 'embeddings'
17
s2_conn = s2.connect(connection_url)

Agent executor

1
# Create the agent executor
2
db = SQLDatabase.from_uri(
3
    connection_url,
4
    include_tables=['embeddings', 'stock_table'],
5
    sample_rows_in_table_info=1
6
)
7
llm = OpenAI(
8
    openai_api_key=os.environ["OPENAI_API_KEY"],
9
    temperature=0,
10
    verbose=True
11
)
12
toolkit = SQLDatabaseToolkit(db=db, llm=llm)
13

14
agent_executor = create_sql_agent(
15
    llm=OpenAI(temperature=0),
16
    toolkit=toolkit,
17
    verbose=True,
18
    top_k=3,
19
    max_iterations=5
20
)

Function to process user questions

Now that the LLM is set up, we can write a function that embeds a question and checks that against the most semantically similar question in our database. If it is above a high threshold, we can assume the user is asking the same kind of question that had been asked before, and output the previous answer. If that question was not asked before it will make the call to our model.

1
def process_user_question(question):
2
  print(f'\nQuestion asked: {question}')
3
  category = 'chatbot'
4

5
  # Record the start time
6
  start_time = time.time()
7

8
  question_embedding= [np.array(x, '<f4') for x in
9
get_embeddings([question], api_key=apikey, engine=model)]
10

11
  # Calculate the elapsed time
12
  elapsed_time = (time.time() - start_time) * 1000
13
  print(f"Execution time for getting the question embedding:
14
{elapsed_time:.2f} milliseconds")
15

16
  params = {
17
        'question_embedding': question_embedding,
18
      }
19
  # Check if embedding is similar to existing questions
20
  stmt = f'select question, answer, dot_product( %(question_embedding)s,
21
question_embedding) :> float as score from embeddings where
22
category="chatbot" order by score desc limit 1;'
23

24

25
  with s2_conn.cursor() as cur:
26
    # Record the start time
27
    start_time = time.time()
28

29
    cur.execute(stmt, params)
30
    row = cur.fetchone()
31

32
    elapsed_time = (time.time() - start_time) * 1000
33
    print(f"Execution time for checking existing questions:
34
{elapsed_time:.2f} milliseconds")
35

36
    try:
37

38
      question2, answer, score = row
39
      print(f"\nClosest Matching row:\nQuestion: {question2}\nAnswer:
40
{answer}\nSimilarity Score: {score}")
41

42
      if score >.97:
43
        print('Action to take: Using existing answer')
44
        return answer
45

46
      else:
47
        print('Action to take: Running agent_executor')
48

49

50
        # Record the start time
51
        start_time = time.time()
52

53
        answer2 = agent_executor.run(question)
54

55
        # Calculate the elapsed time
56
        elapsed_time = (time.time() - start_time) * 1000
57
        print(f"agent_executor execution time: {elapsed_time:.2f}
58
milliseconds")
59
        created_at = datetime.now().strftime("%Y-%m-%d %H:%M:%S")
60

61
        # Record the start time
62
        start_time = time.time()
63

64
        answer_embedding = [np.array(x, '<f4') for x in
65
get_embeddings([answer2], api_key=apikey, engine=model)]
66

67
        # Calculate the elapsed time
68
        elapsed_time = (time.time() - start_time) * 1000
69
        print(f"Answer embeddings execution time:
70
{elapsed_time:.2f} milliseconds")
71

72
        params = {'category': category, 'question': question,
73
            'question_embedding': question_embedding,
74
            'answer': answer2, 'answer_embedding':
75
answer_embedding,
76
            'created_at': created_at}
77

78
        # Send to SingleStoreDB
79
        stmt = f"INSERT INTO {table_name} (category, question,
80
question_embedding, answer, answer_embedding, created_at) VALUES
81
(%(category)s, \n%(question)s, \n%(question_embedding)s, \n%(answer)s,
82
\n%(answer_embedding)s, \n%(created_at)s)"
83

84
        # Record the start time
85
        start_time = time.time()
86

87
        with s2_conn.cursor() as cur:
88
          cur.execute(stmt, params)
89

90
        # Calculate the elapsed time
91
        elapsed_time = (time.time() - start_time) * 1000
92
        print(f"Insert to SingleStore execution time:
93
{elapsed_time:.2f} milliseconds")
94

95
        return answer2
96

97

98
    except:
99
      print('No existing rows.  Running agent_executor')
100

101

102
      # Record the start time
103
      start_time = time.time()
104

105
      answer2 = agent_executor.run(question)
106

107
      # Calculate the elapsed time
108
      elapsed_time = (time.time() - start_time) * 1000
109
      print(f"agent_executor execution time: {elapsed_time:.2f}
110
milliseconds")
111

112
      created_at = datetime.now().strftime("%Y-%m-%d %H:%M:%S")
113

114
      # Record the start time
115
      start_time = time.time()
116

117
      answer_embedding = [np.array(x, '<f4') for x in
118
get_embeddings([answer2], api_key=apikey, engine=model)]
119

120
      # Calculate the elapsed time
121
      elapsed_time = (time.time() - start_time) * 1000
122
      print(f"Answer embeddings execution time: {elapsed_time:.2f}
123
milliseconds")
124

125
      params = {'category': category, 'question': question,
126
          'question_embedding': question_embedding,
127
          'answer': answer2, 'answer_embedding':
128
answer_embedding,
129
          'created_at': created_at}
130

131
      # Send to SingleStoreDB
132
      stmt = f"INSERT INTO {table_name} (category, question,
133
question_embedding, answer, answer_embedding, created_at) VALUES
134
(%(category)s, \n%(question)s, \n%(question_embedding)s, \n%(answer)s,
135
\n%(answer_embedding)s, \n%(created_at)s)"
136

137
      # Record the start time
138
      start_time = time.time()
139

140
      with s2_conn.cursor() as cur:
141
        cur.execute(stmt, params)
142

143
      # Calculate the elapsed time
144
      elapsed_time = (time.time() - start_time) * 1000
145
      print(f"Insert to SingleStore execution time:
146
{elapsed_time:.2f} milliseconds")
147

148
      return answer2

Putting it to the test

Here are two questions that have nearly the same meaning:

1
question_1 = "describe the database"
2
question_2 = "describe database"

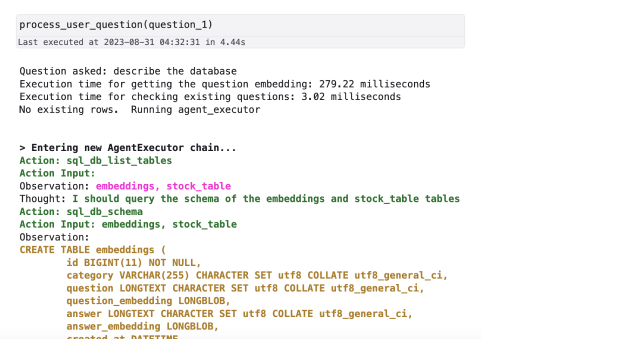

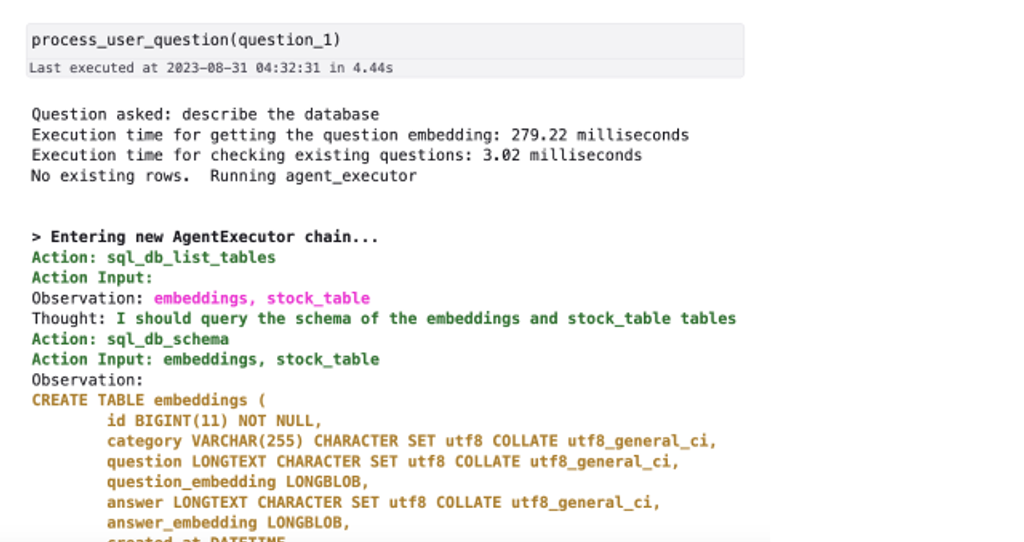

Processing the first question will make a call to the model, since it hasn’t been asked before. This took 4.44 seconds to complete.

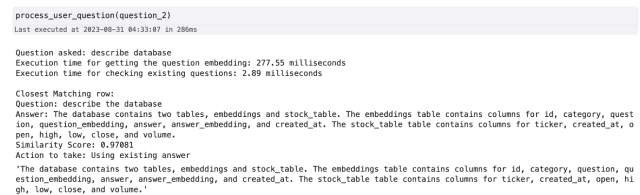

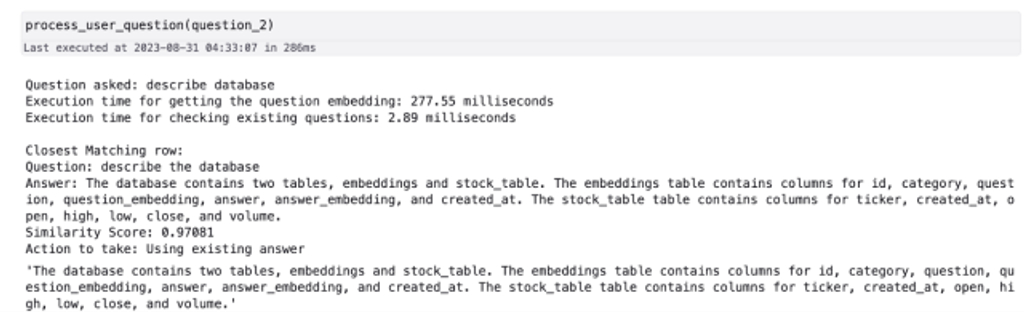

The next question is asking virtually the same thing, but the semantic cache is leveraged. This takes 286 milliseconds to complete, an improvement of over 15.5x!

Conclusion

In the rapidly evolving landscape of AI and LLMs, it’s extremely important to ensure that systems are fast, efficient and scalable. A semantic cache layer solves many challenges in production workloads. Combining this with SingleStoreDB — which is built on the same principles ± promotes a better developer and user experience, while improving operational efficiency and reducing costs associated with computational resources.
